Question 11
A dressing stool with a drop-in padded seat has the underframe made with a 22 mm thick hardood.
The stool has the following specifications:
Length - 400;
Width - 300;
Height - 380.
(All dimensions are in mm)
NO |
QUANTITY |
DESCRPTION |
1 |
1 |
Padded top |
2 |
2 |
Top side rails |
3 |
2 |
Bottom side rails |
4 |
2 |
Top end rails |
5 |
2 |
Bottom end rails |
6 |
4 |
Legs |
- Make a preliminary freehand pictoral sketch of the stool.

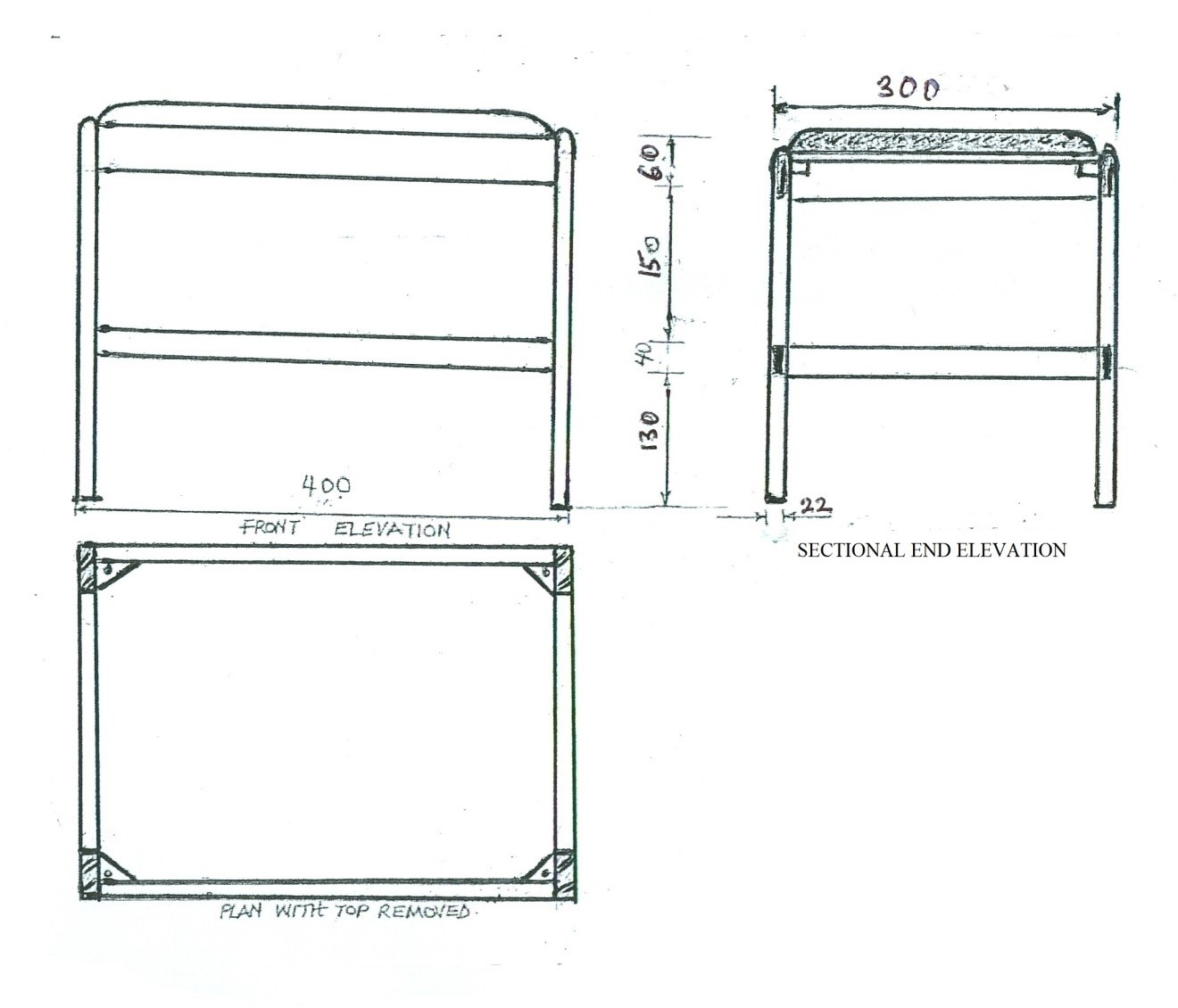

- Using a scale of 1:5, draw in first angle orthogaphic projection, the following views of the stool:
- front elevation;
- sectional end elevation;
- plan with top removed
Observation
Many of the candidates who attempted this question showed slight improvement in their drawing ability when compared to the previous year. However, some of the candidates could not intepret the concept of orthographic drawing to isometric drawing.
Candidates were expected to do the following:

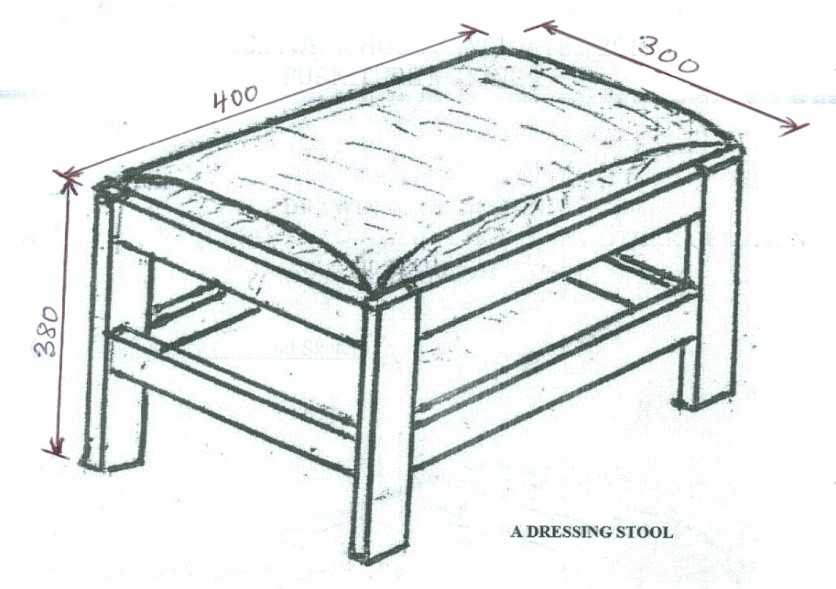

(a) Preliminary Freehand Sketch
(b)
