Question 3

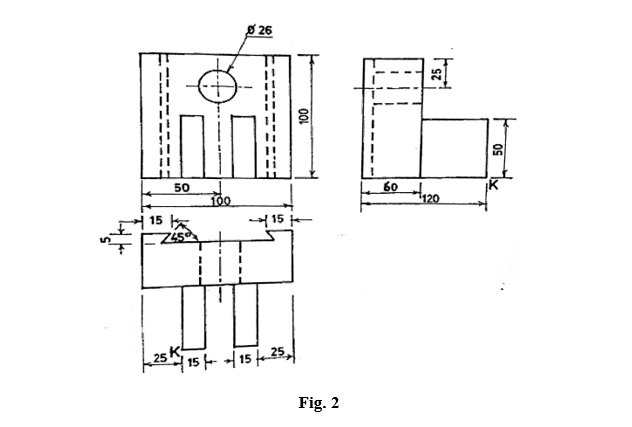

(3) Figure 2 shows three views of a block in first angle projection.
Draw, full size, the isometric projection of the block, making K the lowest point
Observation
Candidates’ responses to this question were very satisfactory.
(3) Figure 2 shows three views of a block in first angle projection.
Candidates’ responses to this question were very satisfactory.
