Question 2
Draw to a scale of 1:100, the detailed floor plan of the building.
Majority of them did well by:
- laying-out the walls on plan at the corners and junctions properly witout overlap;
- labelling the room spaces correctly;
- drawing title indicated as required.
Observation
However, good number of them failed to:
- represent the doors spaces with appropriate conventional symbols;
- dimension their drawing;
- indicate the sectional line B – B on the drawing;
- partition the windows spaces into bays as specified.

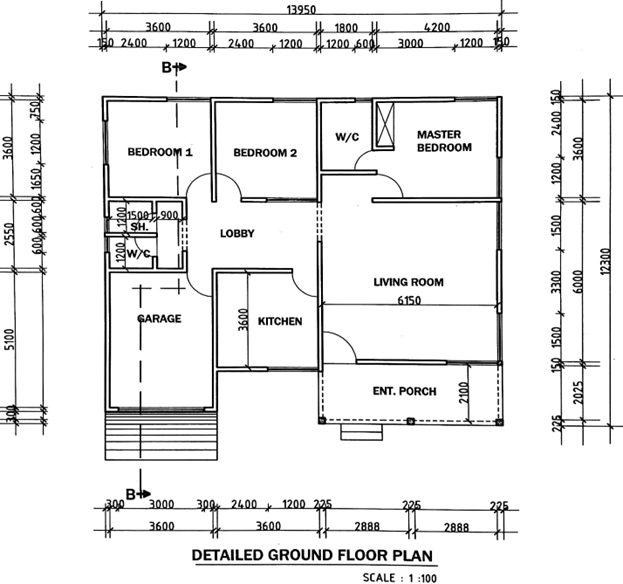

The expected response to question 2 is as given below:
